Hydrogen scalable production for a sustainable and breathable world

One important outcome from the 4.0 Industrial Thinking era brings up systems-to-systems approach integration, embracing cyber-physical systems (CPS), the internet of things (IoT), industrial internet of things (IIoT), cognitive computing and artificial intelligence. If a single key word could epitomize what we are facing, it would be the Market Transformation era.

by M. Szechtman (CIGRE Technical Council Chair), S. Linder (CH) and A. Xémard (FR)
with contributions from M. Rashwan (CA), P. Adam (FR), J.G.M. Furtado (BR) and R. Sollero (BR)

As for any transformation, traditional boundaries or well-established frontier limits may need to be reexamined, such as systems-to-systems interoperability, as synergy may neutralize those limits. Much more dynamism is expected from now on. Under these premises, the scaled commercial use of the Green Hydrogen – the P2G (Power-to-Gas) approach appears to be one key factor for frontiers breaking. The electric power utilities under this scenario are seen to be THE key contributors towards this most fundamental and unavoidable transformation.

The question is: how close or how far are we from considering the P2G/Green H2 era a reality? More importantly: is there any other option for a sustainable and breathable world for our future generations? Green Hydrogen can be used for energy distribution across sectors and regions and as a buffer for renewables. It provides a way to decarbonize segments in power, transport, buildings, and industry, which would otherwise be difficult to decarbonize.

To gain some perspective on how close or distant we still are from a scalable Green Hydrogen being a reality, let us make some rehearsal exercises, very simplified, with the purpose of better understanding.

  1. An excess of 1 GWh of renewable electricity - by making use of energy excess from renewables, i.e., at low energy marginal price, is converted into Hydrogen, yielding approximately 15 t. For such a process, the approximate CAPEX and OPEX figures are today in the range of 4.0 to 6.0 US$/kg, resulting in a maximum value of US$90,000.00/GWh.
  2. The average consumption of a FCEV (Fuel Cell Electrical Vehicle) is 1 kg H2/100 km, and considering that the consumption of an average gasoline car is 8.5 litres/100 km, our 15 t of Hydrogen will then displace approximately 300 t of CO2 emissions in mobility (1 litre of gasoline emits 2.3 kg CO2); Nevertheless, heavy duty vehicles should also be considered in future calculations.
  3. One can also imagine the H2 production not feeding the FCEV system but storing the produced H2 green gas and re-electrifying at a time when the electricity marginal price is higher.
  4. With a re-electrification LHV-efficiency (Lower Heating Value) of 60% (optimum!), our 15 t @ LHV=33.3 kWh/kg will then yield some 300 MWh.
  5. Therefore, the overall cycle efficiency is presently around 30%. Presumably, with so many entities researching on more efficient processes (as high temperature electrolysis, integrated reversible fuel cells and more efficient non-compressed Hydrogen storage), this percentage tends to increase.
  6. One good example is the thermochemical water splitting processes that use high-temperature heat to produce, in a zero-emissions closed loop system, Hydrogen and Oxygen; Concentrated Solar Power (CSP) projects are one good option as the heating source for this process (see below) as their storage capability has shown important technological developments;
  7. The amount of re-electrified energy may be used at times when the energy marginal price is higher;
  8. Alternatively, or even in conjunction, the Hydrogen produced could be transported and traded to be re-electrified somewhere else or used in industrial chemical applications, such as metal refining, ammonia, and fertilizers production, infrastructure for Hydrogen vehicles, synthetic fuels, etc., with higher economic attractiveness;
  9. CO2 reduction by the fossil fuel displacement of the 300 MWh:
    • If natural gas fired CCGT, the emissions would be approximately 300 MWh x 400 kg/MWh = 120 t
    • If hard coal fired thermal plant, the emissions would be approximately 300 MWh x 800 kg/MWh = 240 t
    •  These avoided amounts may be traded as CO2 Removal Certificates (CORCs).

Figure 1 [1] shows the process arrangement that could be associated, for example, to wind power generation plants, to enhance its economic feasibility.

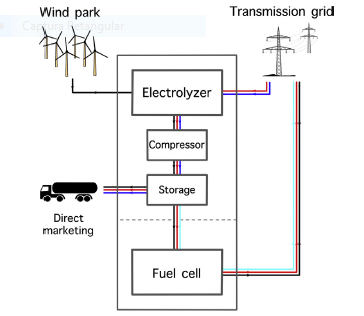

Figure 1 - Associating Green Hydrogen production to Wind Power plants and different applications

As far as transporting and exploring the direct Hydrogen market (outlined in the Figure 1 above as direct marketing) emerges as an alternative, many R&D studies are being carried out with the goal of anticipating the need to adapt existing natural gas pipelines equipment for Hydrogen injection in large quantities, particularly in downstream installations [2]. Progressively, rates starting from 10% levels seem to be achievable with limited changes to the infrastructures. The down side of blending hydrogen into natural gas is that it is very difficult and expensive to separate hydrogen from methane again, for instance for use in fuel cell electric vehicles. Hence, in the long run, a dedicated hydrogen pipeline grid will be preferred.

In addition, as mentioned above, thermochemical water splitting by means of high temperatures — e.g., from concentrated solar power, or from heat of nuclear power reactions —and chemical reactions can be used to produce Hydrogen and Oxygen from water. This is a long-term technology pathway, with potential low or no greenhouse gas emissions.

The process will be based on:

  • Concentrating sunlight onto a reactor tower using a field of mirror "heliostats," as illustrated in Figure 2 [3]
  • Using waste heat from advanced high temperature nuclear reactors [4]

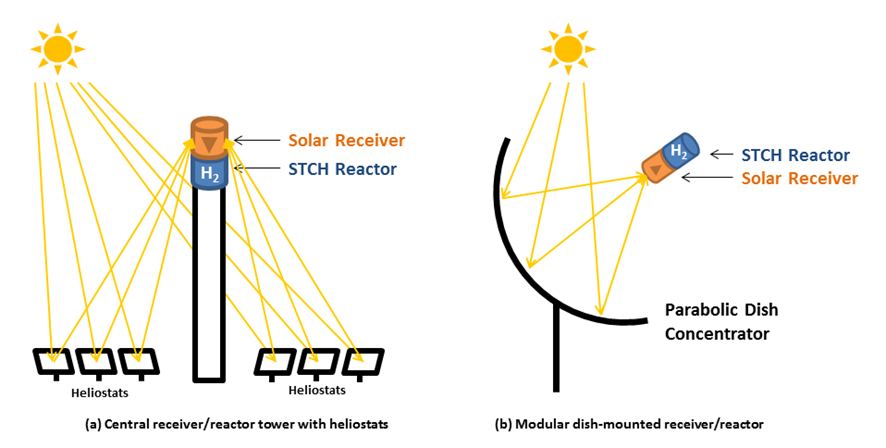

Figure 2 - Two mirror-based approaches for focusing sunlight on a thermochemical reactor

In Figure 2: (a) a field of heliostat mirrors concentrates sunlight onto a central reactor tower; and (b) dish mirrors focus sunlight onto an attached reactor module. The solar-generated high-temperature heat can be used to drive thermochemical reactions that produce hydrogen. Numerous solar thermochemical water-splitting cycles have been investigated for hydrogen production, each with different sets of operating conditions, engineering challenges, and hydrogen production opportunities.

In summary, the exercise, figures, and options presented, rather than being a truly financial calculation, aims at addressing the first part of the question raised above.

Therefore, we urgently need to respond to these issues:

  • Which gaps must be bridged?
  • What are the main technological developments needed [5]?
  • In which markets does Hydrogen have the largest CO2 reduction effect?
  • Which measures on the regulatory level should be implemented to facilitate the transition, making Hydrogen the main energy carrier for a free-emission world.

We are facing challenging times for re-modeling our businesses models.
The P2G era opens a paramount set of new opportunities for expanding the electricity-based modern societies.
CIGRE is deeply involved through its working bodies and technical activities to provide state-of-the-art information and technological successful experiences sharing.
In addition to future options for our planet, we could also address the question of which companies could survive without making the 4.0 new technologies a central vision for their business.

This article has been prepared in the center of the covid-19 health crisis as our belief on a close return to normality and healthy existence.

  • [1] “Hydrogen storage for wind parks: A real options evaluation for an optimal investment in more flexibility”, by Daniel Kroniger, Reinhard Madlener, Applied Energy 136 (2014) 931–946.
  • [2] [a] “Hydrogen Roadmap Europe: A sustainable pathway for the European Energy Transition“, Hydrogen Roadmap Europe by Fuel Cells and Hydrogen Joint Undertaking - FCH-JU -, February 2019. [b] “Hydrogen from renewable power: Technology outlook for the energy transition” International Renewable Energy Agency - IRENA (2018).
  • [3] For more information, see Chapter 5 of the February 2012 U.S. Department of Energy, SunShot Vision Study
  • [4] For more information, see the March 2004 U.S. Department of Energy’s Nuclear Hydrogen R&D Plan
  • [5] “A hybrid energy system combines a redox-flow battery with a water electrolyzer for low-cost storage”, by Sandy Ong, IEEE Spectrum, April 2020.
