Dielectric testing of gas-insulated HVDC systems

Content of the Technical Brochure

After the introduction and presentation of the main objectives of this report (chapters 1 and 2), chapter 3 considers voltage and overvoltage stresses at gas-insulated HVDC systems. Overvoltages originating either on the DC transmission line or at the converter are discussed, based on typical DC link designs and taking into account different converter technologies. For this, slow-front overvoltages (SFO) caused by earth faults at different fault locations on an example line of 400 km length are considered. The effects of such SFO stresses occurring at the converter terminal or DC substation are studied, along with the case of a GIL-OHL interface, e.g. when hybrid lines contain GIL sections. The effects of SFO occurring at converter terminals, caused by earth faults at either the DC side or AC side are also looked at. For the purpose of insulation co-ordination, SFO amplitudes of about 2 p.u. can be assumed. Regarding fast-front overvoltages (FFO), investigations of the stresses due to lightning in the vicinity of the converter terminals and a GIL-OHL interface are carried out. The FFO magnitudes amount to about 2.1 p.u, assuming adequate arrester ratings have been applied.

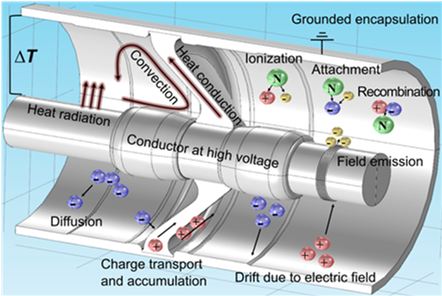

Chapter 4 deals with basic phenomena and insulation properties under DC voltage and overvoltage stresses. Figure 1 shows an example of the mixed insulation typical for DC gas-insulated systems, including gaseous as well as polymeric insulation, together with a metallic conductor at high-voltage potential and an earthed enclosure.

First, conduction through solid insulation and along insulator surfaces, charge accumulation, field transition and effects at gas-solid insulation interfaces are described. After that, the insulating properties of gas-solid insulation systems are considered, starting with the insulation characteristics of the gas gap and the insulators under DC stress, and followed by the presentation of the typical properties of insula­ting materials regarding volume and surface resistivity. Further influencing factors as elec­tric field and temperature dependence, moisture, space charge etc. are examined and typical conduc­tivity values are given. The final subchapter presents computational simulation and its verification. Most of the simulation tools are based on Finite Element Methods (FEM). In multiphysics simulation tools, the simulation of the electric field and charge distribution can be linked with the temperature distribution and the temperature- and field-dependent material properties. The verification of the simulation is done by surface potential measurements on model insulators and on real insulators applied in gas-insulated systems.

Chapter 5 covers typical defects and their PD characteristics. Defects in gas-insulated DC systems are similar to those found in AC systems: Mobile particles, protrusions on the HV conductor, particles lying on a spacer, displaced, misaligned or loose shields and voids in solid insulation components. As the most common defect in gas-insulated systems is caused by mobile particles and these are more harmful under DC stress, the consideration is focused on particle motion and the pulse sequence at positive and negative polarity. Particle bouncing and firefly phenomena are described in particular detail.

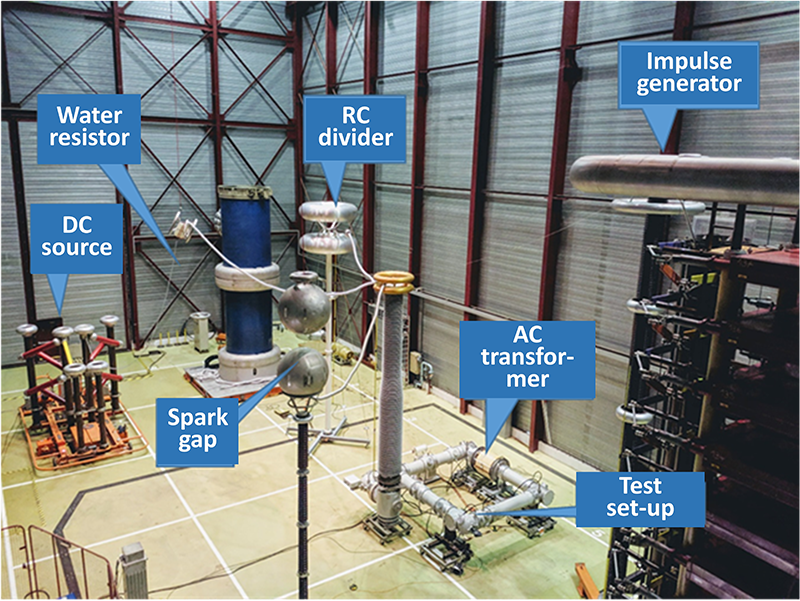

Chapter 6 addresses the background of dielectric testing for proving the capability to withstand the phenomena in gas-insulated DC systems. In the first subchapter the insulator in the gas-insulated environment and the basic idea of the electrical insulation system test, i. e. the testing philosophy, the testing procedure and examples for test-setups (Figure 2) are explained.

The second subchapter covers particles, including mitigation measures along with detection and identification of particles by PD testing and analysis of PD data. Methods of pulse sequence analysis (PSA) are described as a suitable tool for visualisation and identification of PD defects under DC voltage. The third subchapter deals with the performance of the insulating materials over their lifetimes. The consideration supports the conclusion of an uncritical ageing performance at DC voltage, compared to AC voltage at the same dielectric stress. The fourth subchapter describes the prototype installation test to collect more information about the long-term capability of this type of technology. A basic test scenario including DC test voltage levels and superimposed impulse voltages as well as examples for test setups are presented.

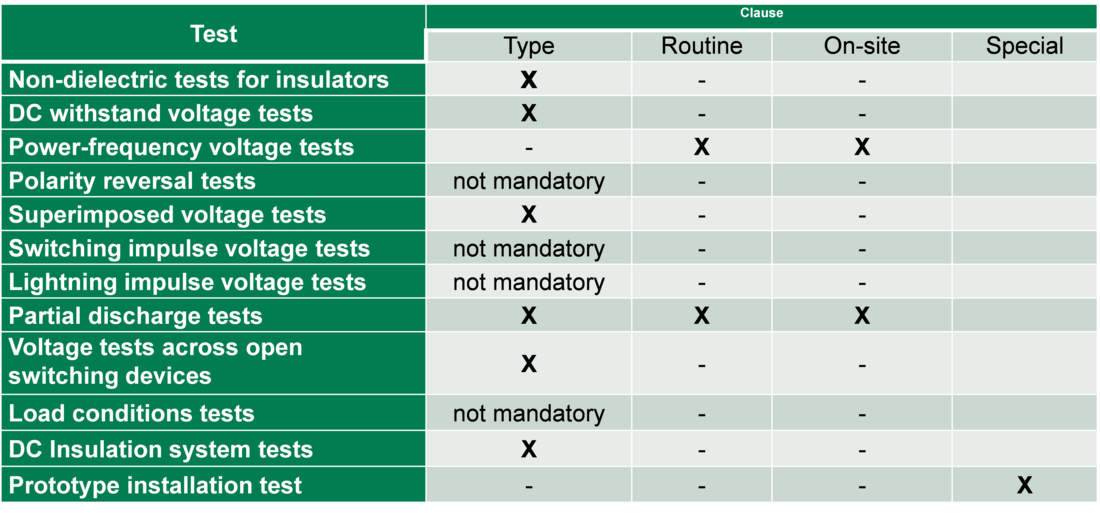

In chapter 7, recommendations for dielectric testing of gas-insulated HVDC systems are given, com­prising type testing, routine testing and onsite testing, as well as the prototype installation test. The types of tests are listed in Table 1.

This chapter provides the fundamentals for a future IEC Standard. It defines the test voltages, test currents and test levels, the test procedure, in particular the DC insulation system as an important part of the type test, and the acceptance criteria. For testing with superimposed voltages, no flashover across the insulator surface is permitted. It is recommended to perform initial PD testing under AC voltage in order to profit from the large body of AC PD experience accumulated till now, in contrast to the quite limited experience available with PD testing at DC voltage. For the prototype installation test the basic test sequence and different options are presented as well as the acceptance criteria, re-testing procedure (in the case defects are found or a flashover occurs), and a procedure in the case of interruptions.

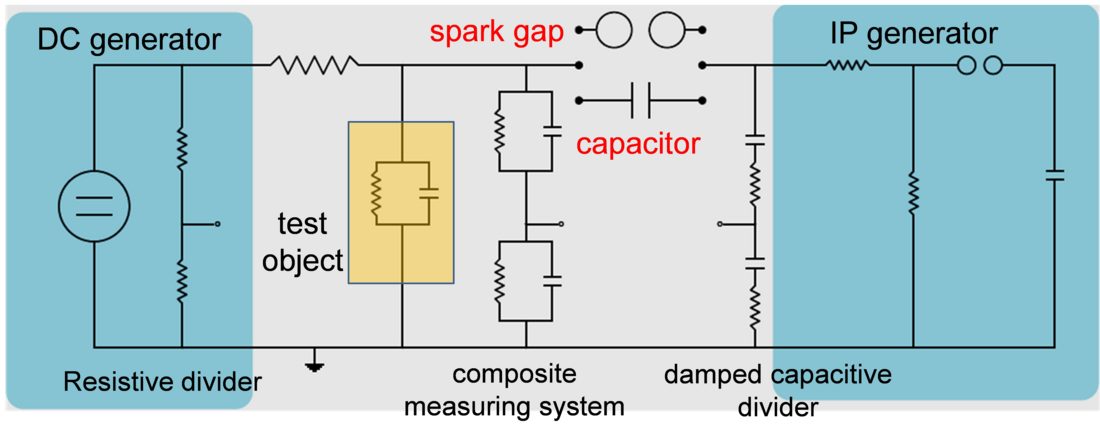

Chapter 8 covers again test equipment and test procedures in order to provide guidance for users. Subchapter 1 deals with superimposed (composite) voltage testing. General explanations for the test circuit for composite voltages are given, the options for the generation of superimposed voltages, and the description of the coupling and blocking elements either by a spark gap or a capacitor are presented (Figure 3). Examples of typical phenomena which can occur with different test setup options are given, and measures are described to avoid their possibly negative impact on the test object.

Subchapter 8.2 details the prototype installation test, the basic test circuit, the circuits to generate and inject high current at high voltage potential, the long-term test sequence and the superimposed voltage tests. Regarding the long-term test sequence, a procedure in case of test interruptions is specified. For test objects of long physical length as e. g. DC GIL, oscillating lightning and switching impulse testing is recommended due to the higher capacitance and inductance of the load.

Testing of the interface between DC cables and gas-insulated DC systems is addressed in chapter 9. Those interfaces will appear more and more often, as gas-insulated DC systems are connected directly to DC cables in order to utilize the space saving features of such arrangements. However, the testing philosophy for cables and gas-insulated systems and the test objectives are different. Taking into account these differences, a comparison of the stresses occurring during dielectric testing of a typical type of interface is carried out by means of simulations, covering both test objectives. Finally, recommendations for proceeding further in this subject area are given.
